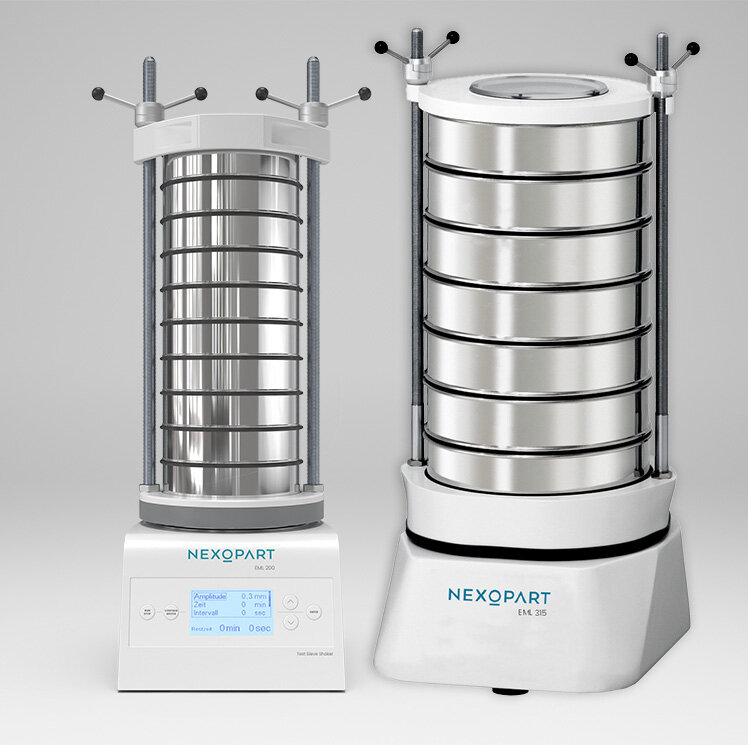

EML sieve shakers: Precise and reliable particle size analysis

The EML sieve shakers from NEXOPART are based on the principle of a vibrating sieve shaker and enable the preparation and particle size determination of dry and wet bulk solids. They are ideal for separating bulk material particles of different sizes. The electromagnetic drive (EML) ensures a three-dimensional throwing motion of the material to be sieved, which enables fast and accurate particle measurement.

Fast delivery times at NEXOPART - Order the EML here now

Vibration sieve shakers are used in the areas of research and development, including in the pharmaceutical, food and chemical industries. They are not only suitable for the quality control of raw materials, but also for the control of intermediate and end products.

Are you looking for modern and easy-to-use products for your particle analysis? - The NEXOPART EML offers you a powerful, state-of-the-art solution. With the EML, NEXOPART sets new standards in precision, function and reliability.

The advantages of EML sieve shakers.

Our premium quality EML-series sieve shakers are flexible and high-performance. We never lose sight of our focus: Maximum accuracy and reliability of your analysis results.
“EML” stands for 'electromagnetic line field' and describes the innovative drive technology of the vibration motor of our vibration sieve shakers. The electromagnetic drive does not require any rotating parts and is not only very robust, quiet and versatile, but also maintenance-free.
All models in the EML series are equipped with a inspection glass. This allows you to check the sieving process at any time. The housing of the test sieve shakers is made of sturdy cast aluminum and, with its high-quality surface and slim fit, is ideal for laboratory use.

Visit our e-shop here

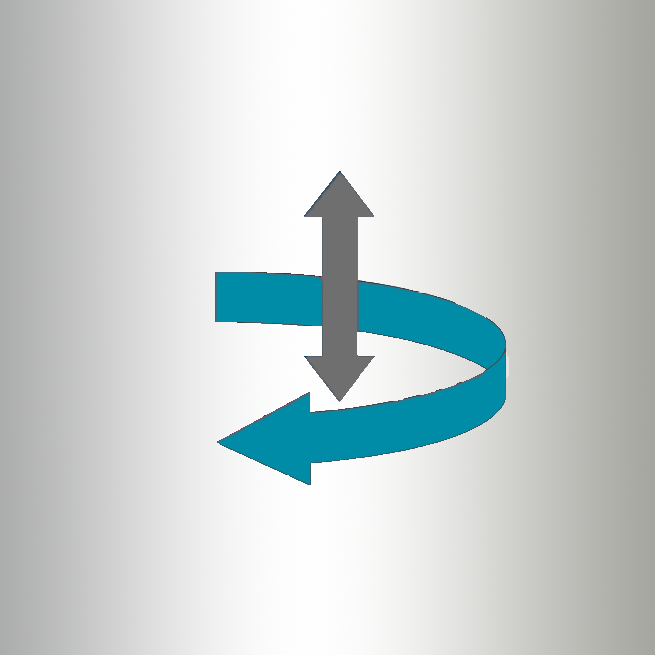

3D sieving for maximum efficiency and accuracy.

The proven 3D sieving process for stones and gravel, granulates, fertilizers and seeds uses an electromagnetic drive (EML) that accelerates your sieving material vertically out of the mesh and simultaneously distributes it horizontally in a circular motion over the entire surface of the sieve. The combination of vertical and horizontal movement ensures an even distribution of the material, a high degree of selectivity and maximizes the efficiency of your particle size analysis. This process guarantees reproducible measurement results and significantly shortens sieving times.

Automatic amplitude control for optimum sieving results.

NEXOPART's innovative G-Control technology offers automatic amplitude control, which ensures continuous acceleration measurement of the entire sieve tower. Regardless of the ambient conditions or sieve load, this advanced technology reliably compensates for all natural oscillations of the sieving machine and the subsurface. This ensures consistent and precise particle size analysis, making your sieving processes more efficient and accurate. With G-Control, you always achieve optimum sieving results, regardless of the conditions.

Find out how and for what you can use the sieve shaker correctly

Different models for various requirements

Regardless of your requirements for a test sieve shaker, NEXOPART's EML series offers a range of devices for a wide variety of requirements.

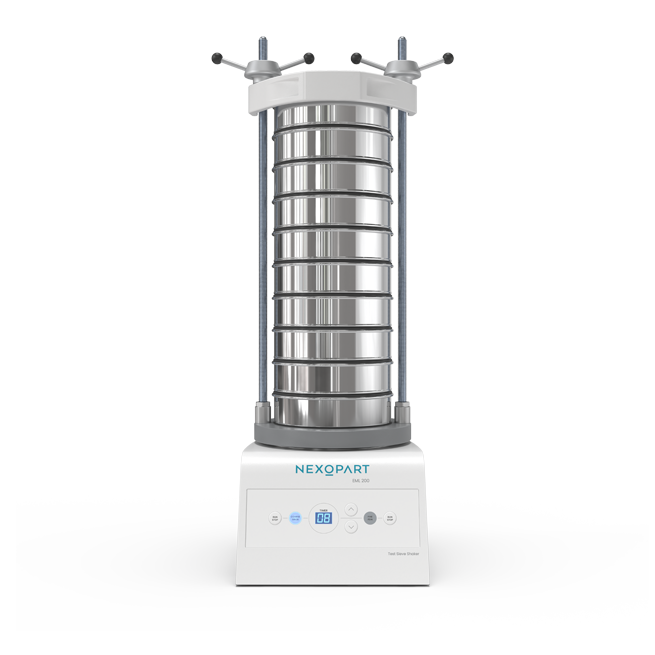

EML 200 Pure

Plug in and go – the ideal base model for quick and easy operation. You have the choice between the two hard-coded amplitudes:

coarse and
fine

and you can start sieving immediately. With proven quality at an affordable price.

To our e-shop

Sieve analysis with sample weights of up to 3 kg

Two hard-coded amplitudes - "coarse" and "fine"

A predefined interval

Simple and quick operability

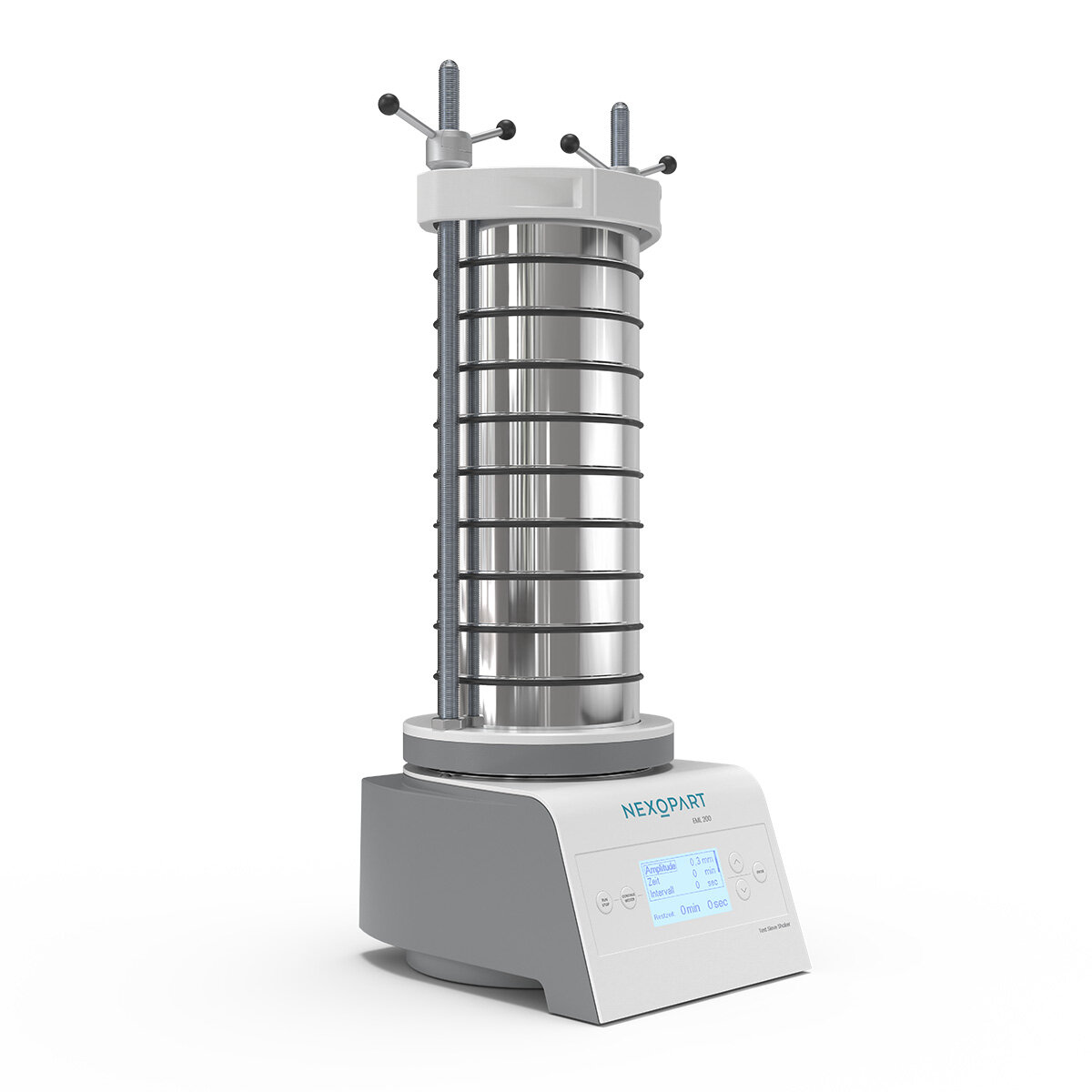

EML 200 Premium

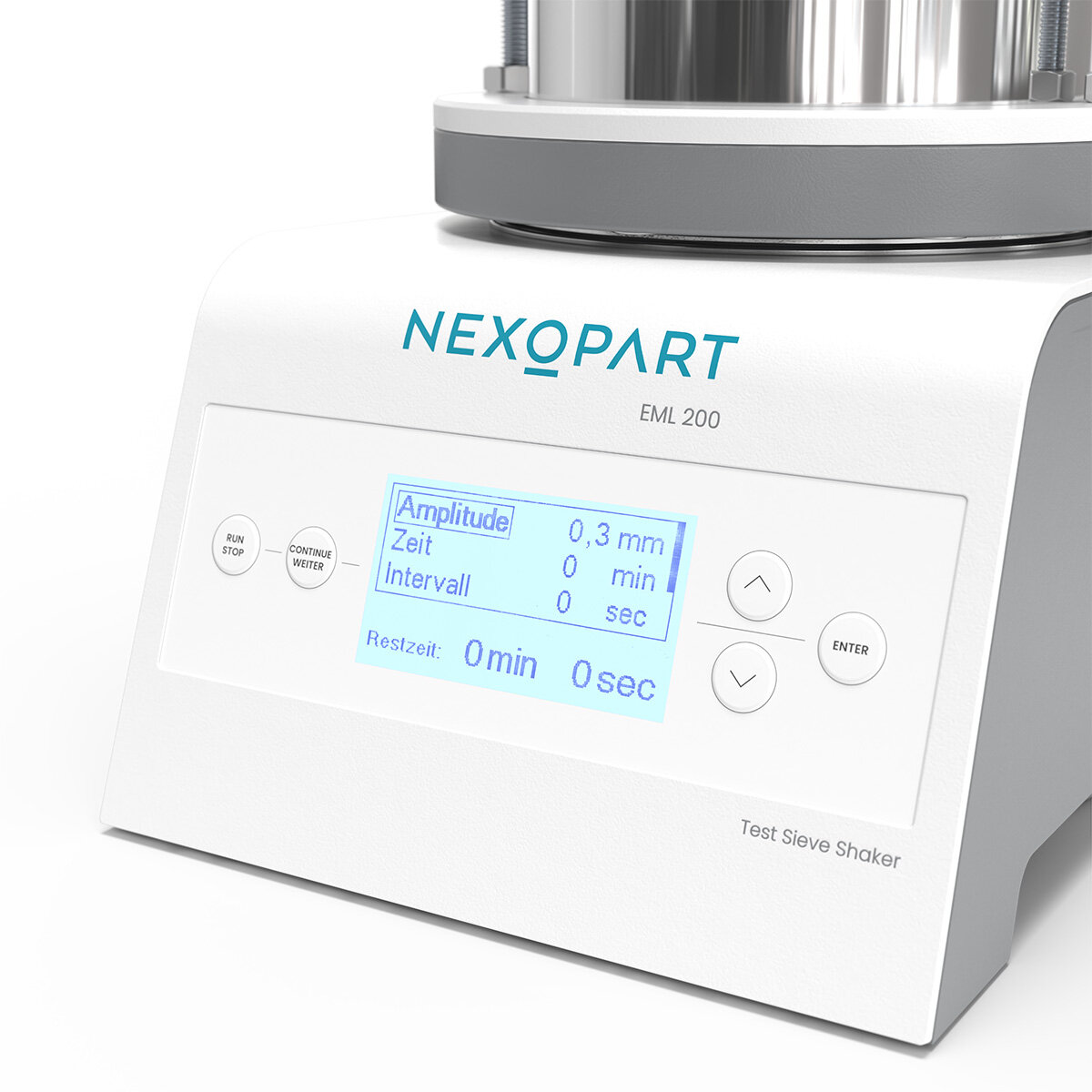

Quiet and with improved damping system – the perfect model for precise and reproducible sieve analysis. The large display of the premium version offers you a clear overview and is easy to operate. The following features make it the perfect alternative to our base model:

Data interface
Interval
Freely selectable amplitudes

We offer two clamping systems for the sieve shaker EML 200 Premium:

The link will take you directly to the product in our e-shop.

Sieve analysis with sample weights of up to 3 kg

Individually adjustable amplitudes

Individually definable intervals

Digital indicator

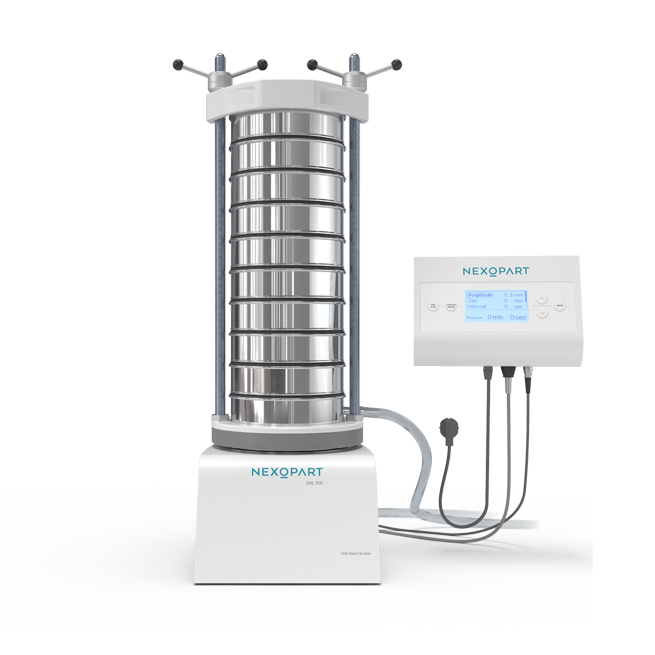

EML 200 Premium Remote

Dry and wet – the Premium Remote, the most versatile of the EML series is equipped with a separate control unit, giving you the option of reliable wet sieving. You can of course also opt for dry sieving - the choice is yours. The lid equipped with an inspection glass offers you the usual view of the sieving material during sieving.

Sieve analysis with sample weights of up to 3 kg

Individually adjustable amplitudes

Individually definable intervals

Separate control unit with a digital indicator

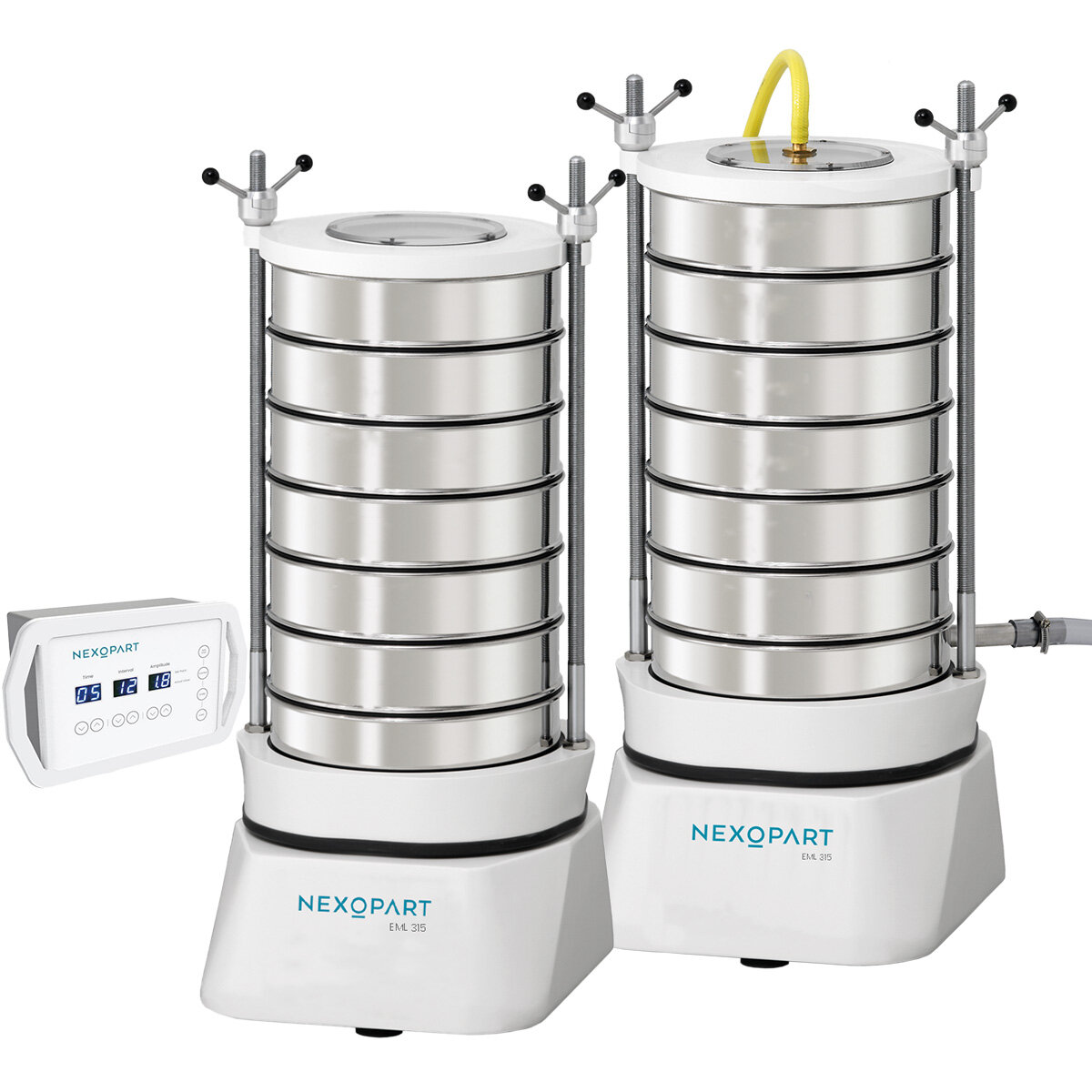

EML 315

Dry (T) or wet (N) and up to 6 kg – You can use the EML digital plus (T or N) for various sieves with diameters of up to 315 mm. You can set and save the following settings as required:

Sieving time
Interval and
Amplitude

Sieve analysis with sample weights of up to 6 kg

Individually adjustable amplitudes

Wet and dry sieving

Separate control unit with a digital indicator

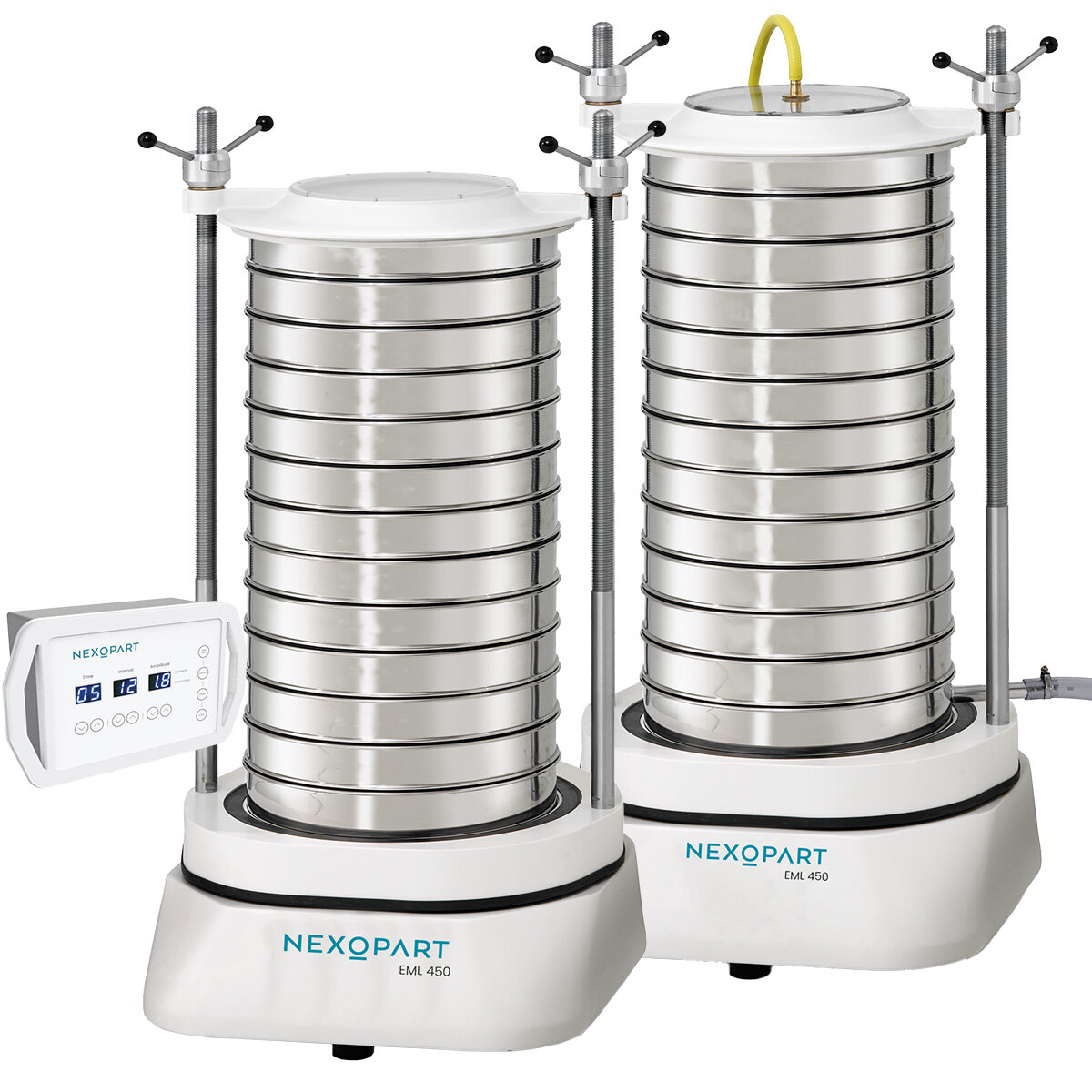

EML 450

Heavy, heavier, EML 450 – The EML 450 digital plus for dry (T) or wet (N) sieving is not only the heavyweight of the EML series; with bulk material weights of up to 15 kg, it also offers the largest feed capacity and is ideal for test sieves with diameters of up to 450 mm.

Sieve analysis with sample weights of up to 15 kg

Individually adjustable amplitudes

Wet and dry sieving

Separate control unit with a digital indicator

FAQ about electromagnetic test sieve shakers

Which materials can be analyzed with sieve shakers?

L

Sieve shakers can be used to analyze various materials, especially fine-grained and granular substances. These include, for example, sand and gravel, metal powder, plastic granules, chemical and pharmaceutical powders, building materials such as cement and limestone, ash and slag, animal feed, seeds or foodstuffs such as flour and sugar.

What is the EML test sieve technology?

L

EML test sieve technology is a process for determining the particle size distribution of materials such as granulates and powders using precise sieving machines that rely on an electromagnetic drive.

What are the advantages of EML technology?

L

The EML technology in our sieve shakers refers to the electromagnetic drive, which does not require any rotating parts. As a result, our test sieve shakers with EML technology are not only very robust, quiet and versatile, but also practically maintenance-free.

How does 3D sieving using EML technology work?

L

With 3D sieving, the EML drive accelerates the material vertically out of the meshes and distributes it horizontally in a circular motion evenly over the entire mesh surface, achieving fast and reproducible results.

What is the automatic amplitude control?

L

The automatic amplitude control G-Control ensures constant acceleration measurement throughout the entire sieve tower and compensates for natural vibrations of the sieving machine and the underlying surface. This gives you an accurate and reproducible result, regardless of external conditions.

What are the differences between the various test sieve shakers?

L

The various sieve shakers from NEXOPART differ primarily in terms of sieve diameter and feed quantity. The basic model EML 200 Pure with its two pre-programmed amplitudes and simple operation is ideal for quick and easy use. With sieve diameters from 50 to 203 mm and a maximum feed quantity of up to 3 kg, the EML 200 Pure model is particularly suitable for smaller standard analyses. Our premium test sieve shakers, such as the EML 200 Premium or EML 315, feature a digital display, a data interface, adjustable intervals and a freely selectable amplitude. The larger models in the EML series are ideal for test sieves up to 450 mm in diameter and can sieve up to 15 kg of bulk material. All sieve shakers in the EML series feature an innovative electromagnetic drive, 3D sieve technology and a high-quality, compact cast aluminum design. NEXOPART offers the ideal sieve shaker for every requirement.
